This clause defines the content and presentation of the functional requirements of the CC, and provides guidance on the organisation of the requirements for new components to be included in an ST. The functional requirements are expressed in classes, families, and components.

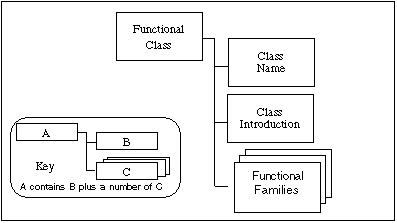

Figure 2.1 illustrates the functional class structure in diagrammatic form. Each functional class includes a class name, class introduction, and one or more functional families.
Figure 2.1 - Functional class structure
The class name subclause provides information necessary to identify and categorise a functional class. Every functional class has a unique name. The categorical information consists of a short name of three characters. The short name of the class is used in the specification of the short names of the families of that class.
The class introduction expresses the common intent or approach of those families to satisfy security objectives. The definition of functional classes does not reflect any formal taxonomy in the specification of the requirements.
The class introduction provides a figure describing the families in this class and the hierarchy of the components in each family, as explained in subclause 2.2.

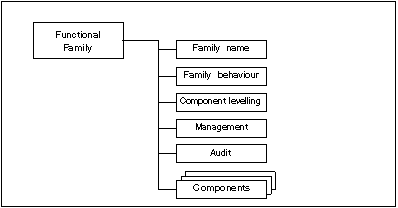

Figure 2.2 illustrates the functional family structure in diagrammatic form.
Figure 2.2 - Functional family structure
The family name subclause provides categorical and descriptive information necessary to identify and categorise a functional family. Every functional family has a unique name. The categorical information consists of a short name of seven characters, with the first three identical to the short name of the class followed by an underscore and the short name of the family as follows XXX_YYY. The unique short form of the family name provides the principal reference name for the components.
The family behaviour is the narrative description of the functional family stating its security objective and a general description of the functional requirements. These are described in greater detail below:
a) The security objectives of the family address a security problem that may be solved with the help of a TOE that incorporates a component of this family;
b) The description of the functional requirements summarises all the requirements that are included in the component(s). The description is aimed at authors of PPs, STs and functional packages who wish to assess whether the family is relevant to their specific requirements.
Functional families contain one or more components, any one of which can be selected for inclusion in PPs, STs and functional packages. The goal of this section is to provide information to users in selecting an appropriate functional component once the family has been identified as being a necessary or useful part of their security requirements.
This section of the functional family description describes the components available, and their rationale. The exact details of the components are contained within each component.
The relationships between components within a functional family may or may not be hierarchical. A component is hierarchical to another if it offers more security./P>
As explained in Subclause 2.2 the descriptions of the families provide a graphical overview of the hierarchy of the components in a family.
The management requirements contain information for the PP/ST authors to consider as management activities for a given component. The management requirements are detailed in components of the management class (FMT).
A PP/ST author may select the indicated management requirements or may include other management requirements not listed. As such the information should be considered informative.
The audit requirements contain auditable events for the PP/ST authors to select, if requirements from the class FAU, Security audit, are included in the PP/ST. These requirements include security relevant events in terms of the various levels of detail supported by the components of the FAU_GEN Security audit data generation family. For example, an audit note might include actions that are in terms of: Minimal - successful use of the security mechanism; Basic - any use of the security mechanism as well as relevant information regarding the security attributes involved; Detailed - any configuration changes made to the mechanism, including the actual configuration values before and after the change.
It should be observed that the categorisation of auditable events is hierarchical. For example, when Basic Audit Generation is desired, all auditable events identified as being both Minimal and Basic should be included in the PP/ST through the use of the appropriate assignment operation, except when the higher level event simply provides more detail than the lower level event. When Detailed Audit Generation is desired, all identified auditable events (Minimal, Basic and Detailed) should be included in the PP/ST.
In the class FAU the rules governing the audit are explained in more detail.

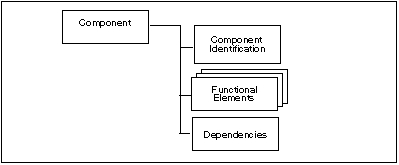

Figure 2.3 illustrates the functional component structure.
Figure 2.3 - Functional component structure
The component identification subclause provides descriptive information necessary to identify, categorise, register and cross-reference a component. The following is provided as part of every functional component:
A unique name. The name reflects the purpose of the component.
A short name. A unique short form of the functional component name. This short name serves as the principal reference name for the categorisation, registration and cross-referencing of the component. This short name reflects the class and family to which the component belongs and the component number within the family.
A hierarchical-to list. A list of other components that this component is hierarchical to and for which this component can be used to satisfy dependencies to the listed components.
A set of elements is provided for each component. Each element is individually defined and is self-contained.
A functional element is a security functional requirement that if further divided would not yield a meaningful evaluation result. It is the smallest security functional requirement identified and recognised in the CC.
When building packages, PPs and/or STs, it is not permitted to select only one or more elements from a component. The complete set of elements of a component must be selected for inclusion in a PP, ST or package.
A unique short form of the functional element name is provided. For example the requirement name FDP_IFF.4.2 reads as follows: F - functional requirement, DP -class "User data protection", _IFF - family "Information flow control functions", .4 - 4th component named "Partial elimination of illicit information flows", .2 - 2nd element of the component.
Dependencies among functional components arise when a component is not self sufficient and relies upon the functionality of, or interaction with, another component for its own proper functioning.
Each functional component provides a complete list of dependencies to other functional and assurance components. Some components may list "No dependencies". The components depended upon may in turn have dependencies on other components. The list provided in the components will be the direct dependencies. That is only references to the functional requirements that are required for this requirement to perform its job properly. The indirect dependencies, that is the dependencies that result from the depended upon components can be found in annex A of this part of the CC. It is noted that in some cases the dependency is optional in that a number of functional requirements are provided, where each one of them would be sufficient to satisfy the dependency (see for example FDP_UIT.1).
The dependency list identifies the minimum functional or assurance components needed to satisfy the security requirements associated with an identified component. Components that are hierarchical to the identified component may also be used to satisfy the dependency.
The dependencies indicated in CC Part 2 are normative. They must be satisfied within a PP/ST. In specific situations the indicated dependencies might not be applicable. The PP/ST author, by providing the rationale why it is not applicable, may leave the depended upon component out of the package, PP or ST.
The functional components used in the definition of the requirements in a PP, an ST or a functional package may be exactly as specified in clauses 3 to 13 of this part of the CC, or they may be tailored to meet a specific security objective. However, selecting and tailoring these functional components is complicated by the fact that identified component dependencies must be considered. Thus, this tailoring is restricted to an approved set of operations.
A list of permitted operations is included with each functional component. Not all operations are permitted on all functional components.
The permitted operations are selected from the following set:
- iteration: allows a component to be used more than once with varying
operations,
- assignment: allows the specification of an identified parameter,
- selection: allows the specification of one or more elements from a list,
- refinement: allows the addition of details.
Where necessary to cover different aspects of the same requirement (e.g. identification of more than one type of user), repetitive use of the same component from this part of the CC to cover each aspect is permitted.
Some functional component elements contain parameters or variables that enable the PP/ST author to specify a policy or a set of values for incorporation into the PP or ST to meet a specific security objective. These elements clearly identify each parameter and constraint on values that may be assigned to that parameter.
Any aspect of an element whose acceptable values can be unambiguously described or enumerated can be represented by a parameter. The parameter may be an attribute or rule that narrows the requirement to a specific value or range of values. For instance, based on a specified security objective, the functional component element may state that a given operation should be performed a number of times. In this case, the assignment would provide the number, or range of numbers, to be used in the parameter.
This is the operation of picking one or more items from a list in order to narrow the scope of a component element.
For all functional component elements the PP/ST author is permitted to limit the set of acceptable implementations by specifying additional detail in order to meet a security objective. Refinement of an element consists of adding these technical details.
Within a ST, the meanings of the terms subject and object might need to be explained for the TOE to be meaningful, and are therefore subject to refinement.
Like the other operations, refinement does not levy any completely new requirements. It applies an elaboration, interpretation, or a special meaning to a requirement, rule, constant or condition based on security objectives. Refinement shall only further restrict the set of possible acceptable functions or mechanisms to implement the requirements, but never increase it. Refinement does not allow new requirements to be created, and therefore does not increase the list of dependencies associated with a component. The PP/ST author must be careful that the dependency needs of other requirements that depend on this requirement, are satisfied.
The grouping of the components in this part of the CC does not reflect any formal taxonomy.
This part of the CC contains classes of families and components, which are rough groupings on the basis of related function or purpose, presented in alphabetic order. At the start of each class is an informative diagram that indicates the taxonomy of each class, indicating the families in each class and the components in each family. The diagram is a useful indicator of the hierarchical relationship that may exist between components.
In the description of the functional components, a section identifies the dependencies between the component and any other components.

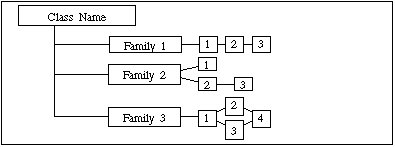

In each class a figure describing the family hierarchy similar to Figure 2.4, is provided. In Figure 2.4. the first family, Family 1, contains three hierarchical components, where component 2 and component 3 can both be used to satisfy dependencies on component 1. Component 3 is hierarchical to component 2 and can also be used to satisfy dependencies on component 2.
Figure 2.4 - Sample class decomposition diagram
In Family 2 there are three components not all of which are hierarchical. Components 1 and 2 are hierarchical to no other components. Component 3 is hierarchical to component 2, and can be used to satisfy dependencies on component 2, but not to satisfy dependencies on component 1.
In Family 3, components 2, 3, and 4 are hierarchical to component 1. Components 2 and 3 are both hierarchical to component 1, but non-comparable. Component 4 is hierarchical to both component 2 and component 3.
These diagrams are meant to complement the text of the families and make identification of the relationships easier. They do not replace the "Hierarchical to:" note in each component that is the mandatory claim of hierarchy for each component.
The relationship between components within a family is highlighted using a bolding convention. This bolding convention calls for the bolding of all new requirements. For hierarchical components, requirements and/or dependencies are bolded when they are enhanced or modified beyond the requirements of the previous component. In addition, any new or enhanced permitted operations beyond the previous component are also highlighted using bold type.
